RGK Elite XSports Wheelchair

The next generation basketball wheelchair

The next generation basketball wheelchair

The future is here. A quantum leap in design, the RGK Elite X basketball wheelchair is the perfect combination of new technology and materials. At its core, this transcendent chair has a unique, pioneering carbon fibre axle, making it significantly stiffer and lighter. The TRI-FRAME chassis design makes a world of difference to the distribution of energy during play. With the perfection of performance and responsiveness that the Elite X has, you certainly won’t be able to blame the wheelchair anymore.

联系我们
RGK Elite X

Carbon fibre sideguards

Up to 100g total weight saving was achieved on the RGK Elite X thanks to switching from aluminium to carbon fibre. This basketball wheelchair comes with a specialised CNC sidearm, made to measure each and every time, allowing for any shape to be created and giving a beautiful edge that is near on impossible to get when working with carbon fibre.

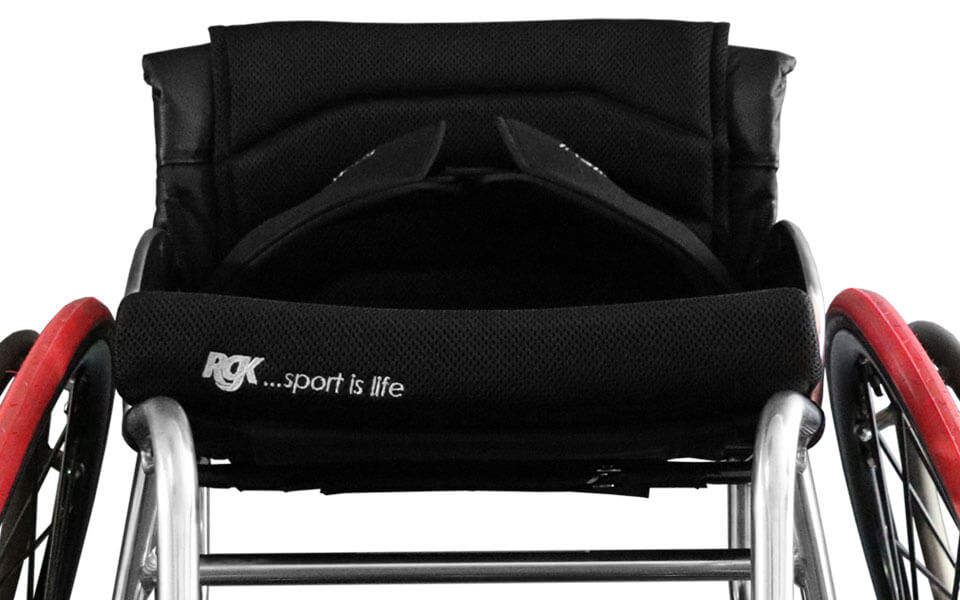

Ergonomics

Ergonomics

  • Range of ergonomic backrest options to support your requirements for maximum comfort and balance

  • Ergonomic seat for pelvic positioning and optimum balance

  • Taper seat, V-front or asymmetrical frame design for super responsiveness

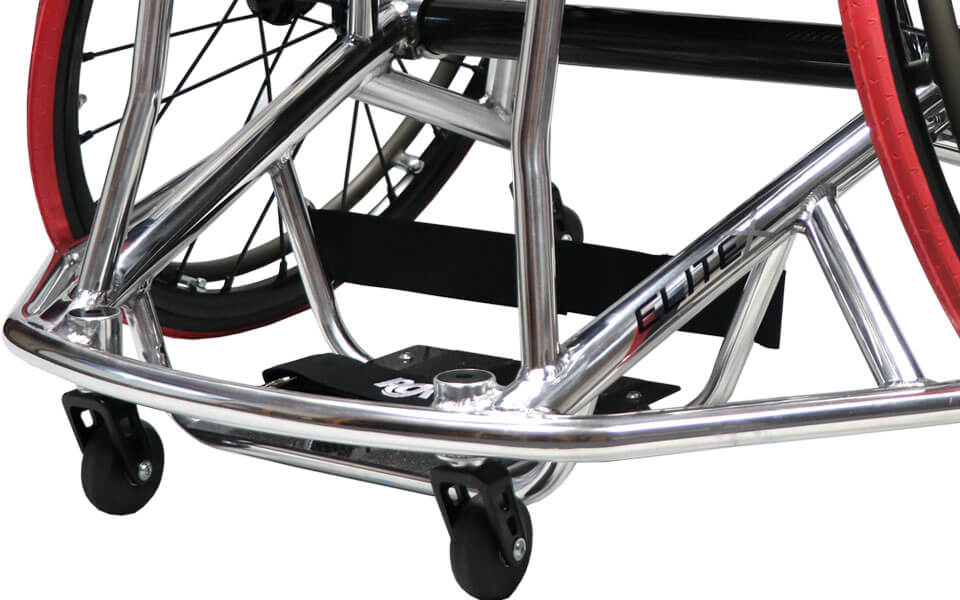

Frame options

Frame options

  • Fixed or adjustable footrest position

  • Single or double anti-tip

  • Fixed or removable anti-tip

  • Range of front wing designs

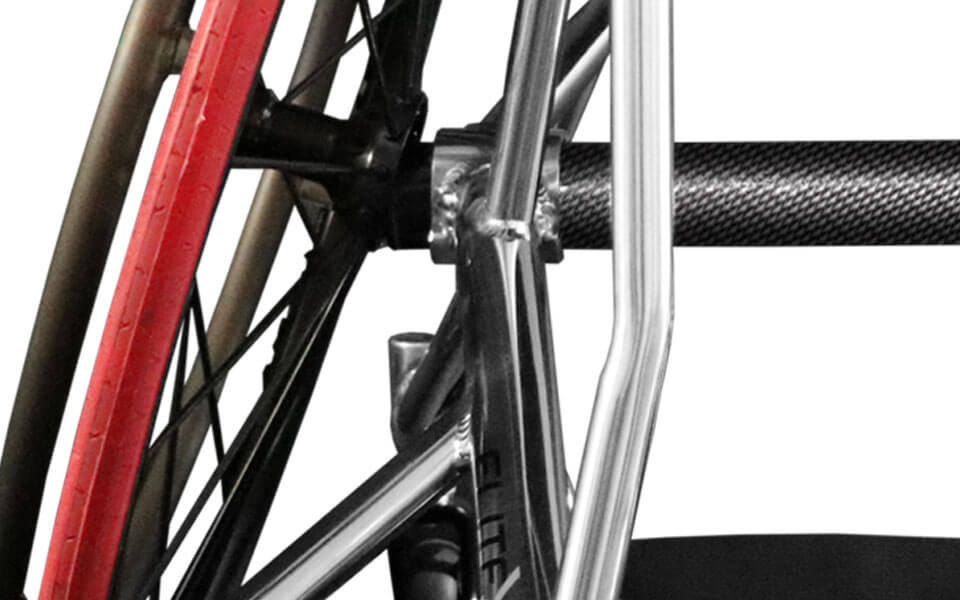

Carbon fibre axle

Carbon fibre axle

  • Huge weight saving switching material from aluminium to carbon fibre

  • Enhance the stiffness and rigidity of your chair with carbon fibre (8 times stronger than aluminium)

  • Axle is clamped to the frame, not welded in position. This provides post-build fine tuning of the toe in/toe out – get your chair rolling absolutely perfectly

Carbon fibre sideguards

Carbon fibre sideguards

Up to 100g total weight saving was achieved on the RGK Elite X thanks to switching from aluminium to carbon fibre. This basketball wheelchair comes with a specialised CNC sidearm, made to measure each and every time, allowing for any shape to be created and giving a beautiful edge that is near on impossible to get when working with carbon fibre.

Tri-Frame

The TRI-FRAME is a brand-new design that better distributes the energy created during play across more sections of the chair, the benefit of which is peace of mind that your chair can withstand anything. Instead of relying solely on the axle, the force is now split across the downtube, the strongest part of the frame.

  • Aerospace grade aluminium 7020 frame, A10 heat treatment as standard

  • Triangular frame chassis design (TRI-FRAME) that takes the main stress off of the axle with the strongest shape possible

  • Heavy duty frame design available

  • Reinforced "impact areas" to prevent game and travel damage, such as backrest and anti-tip

  • Heavy duty frame design available

外形尺寸
Seat Width:Max. 500 mm
Seat Depth:Max. 500 mm
Seat Height:360-630 mm
Rear seat height:360-630 mm
性能参数/重量
Maximum User Weight:125 kg

作为我们持续产品改进计划的一部分,瑞森医疗保留更改产品规格和设计的权利,恕不另行通知。此外,并非所有提供的特性和选项均与轮椅的每种配置完全兼容。更多详情请参阅用户使用手册。
