Empulse R20Caregiver Assist

Unique folding push device

Pushing your life

With the new Empulse R20 pushing aid it has never been so easy to support the attendant pushing the wheelchair. Whether uphill, downhill or long trips, the R20 helps in every situation. Combining a unique folding function, the lightweight R20 is under 5 kg providing easy transportation and literally no impact when self propelling your wheelchair.

The R20 is compatible with almost any wheelchair that has a box frame and a tube diameter of 22-28 mm.

联系我们
Empulse R20
Pushing has never been so easy

Lifestyle

Pushing has never been so easy

Whether uphill, downhill or long trips, the R20 helps in every situation. Combining a unique folding function, the lightweight R20 is just 5 kg providing easy transportation and literally no impact when self propelling your wheelchair.

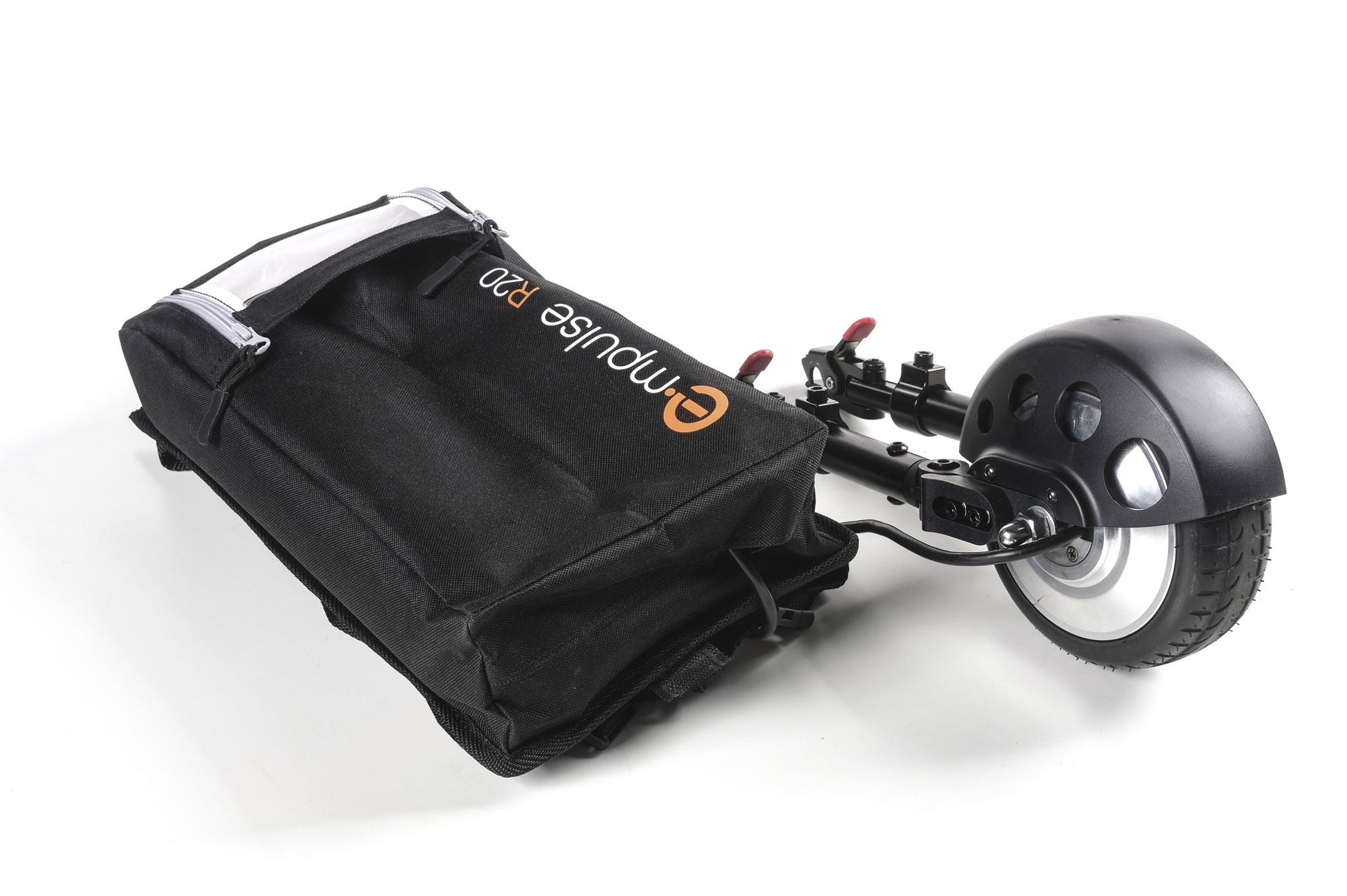

Unique foldability

Foldability

Unique foldability

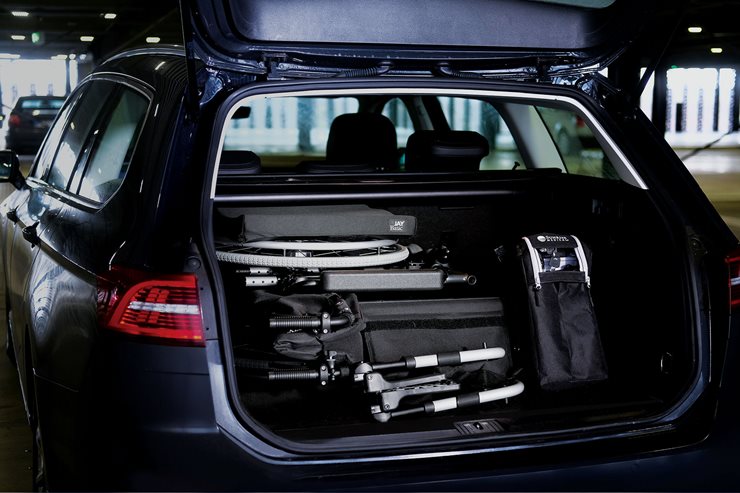

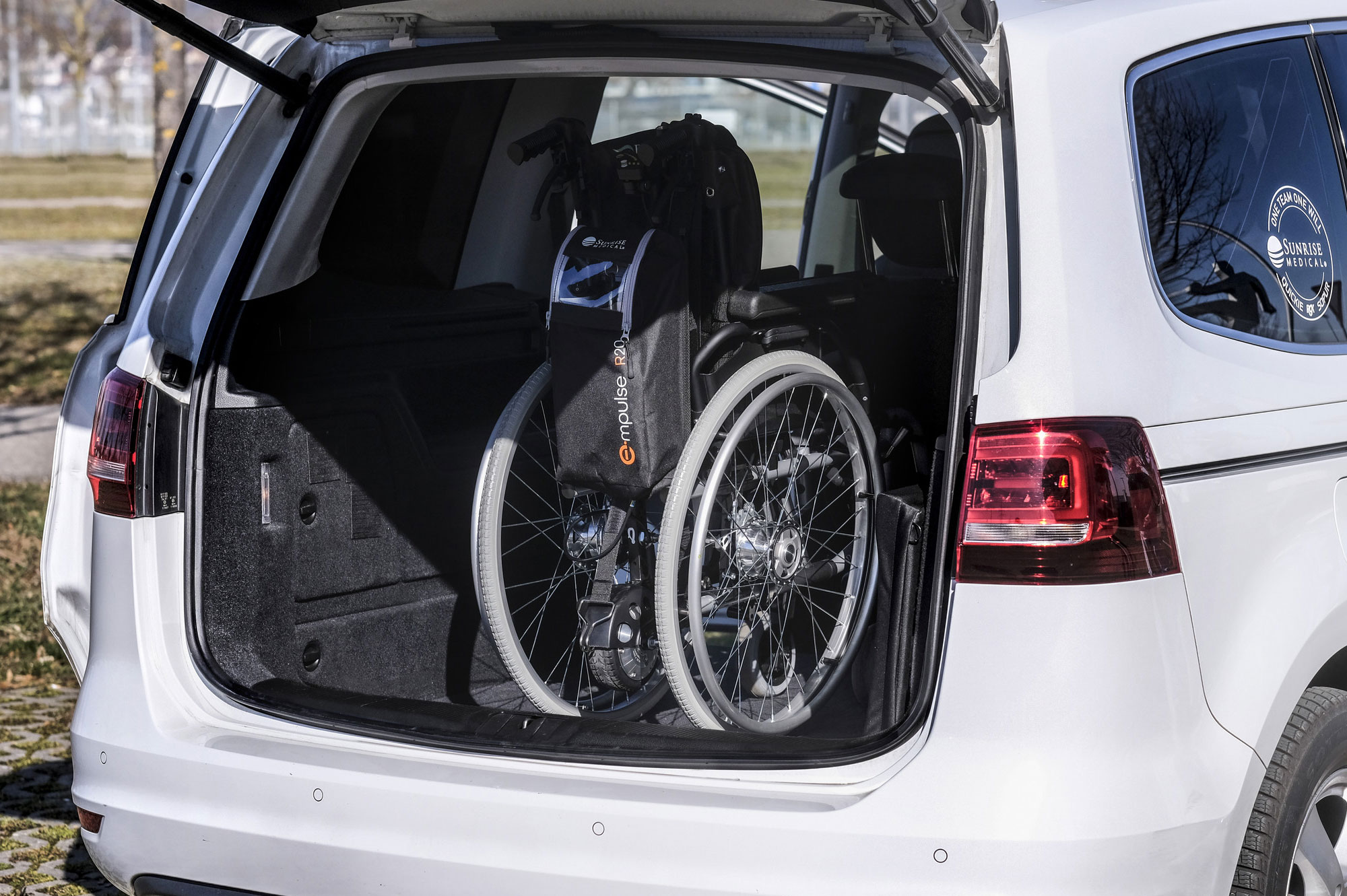

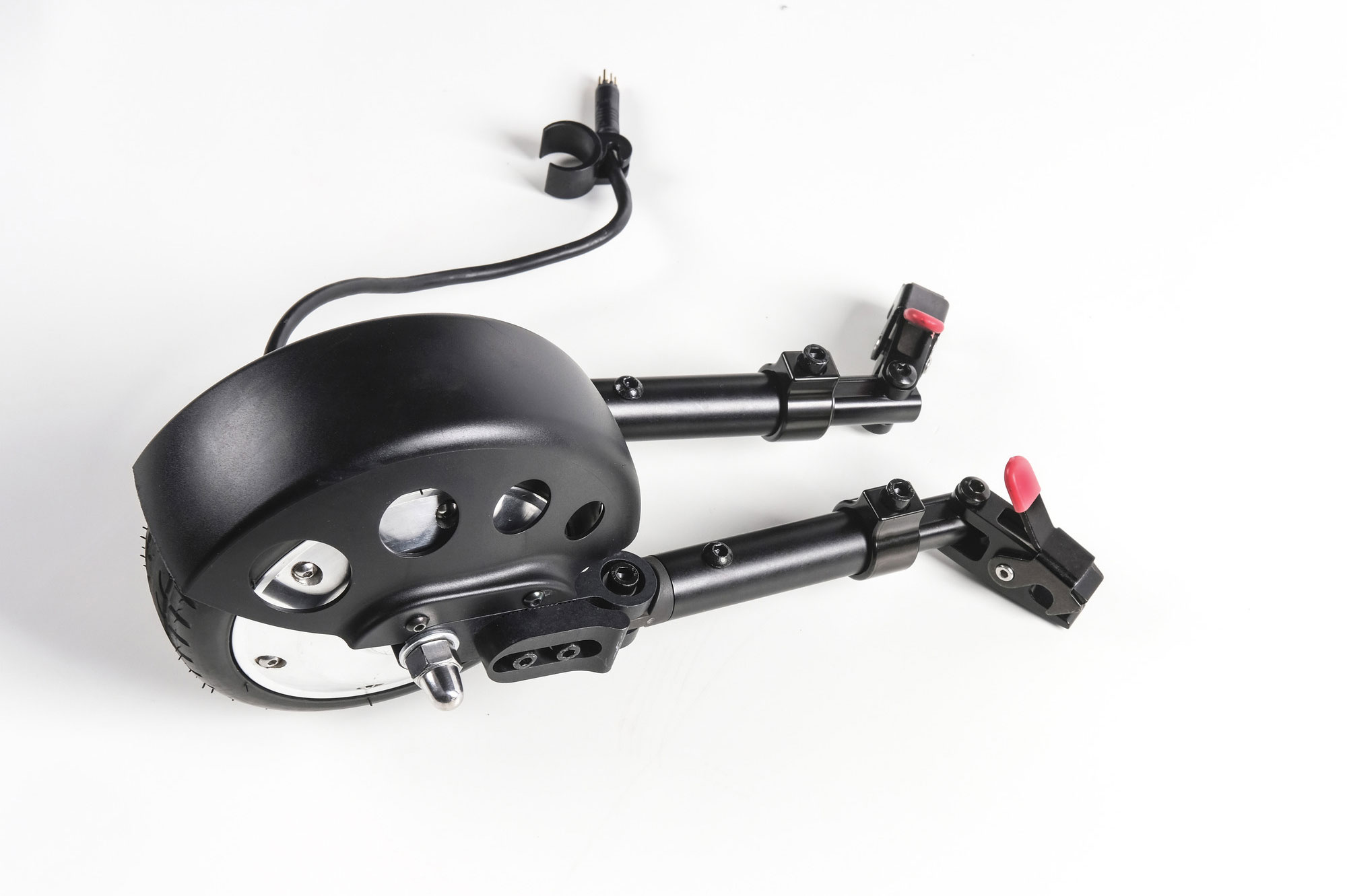

The R20 is the only foldable push device on the market. Easy transport, even when still attached to the wheelchair. The click fix docking system allows easy docking without using any tools. Only the small docking pin remains on the wheelchair which means low weight, no visibility and nice design.

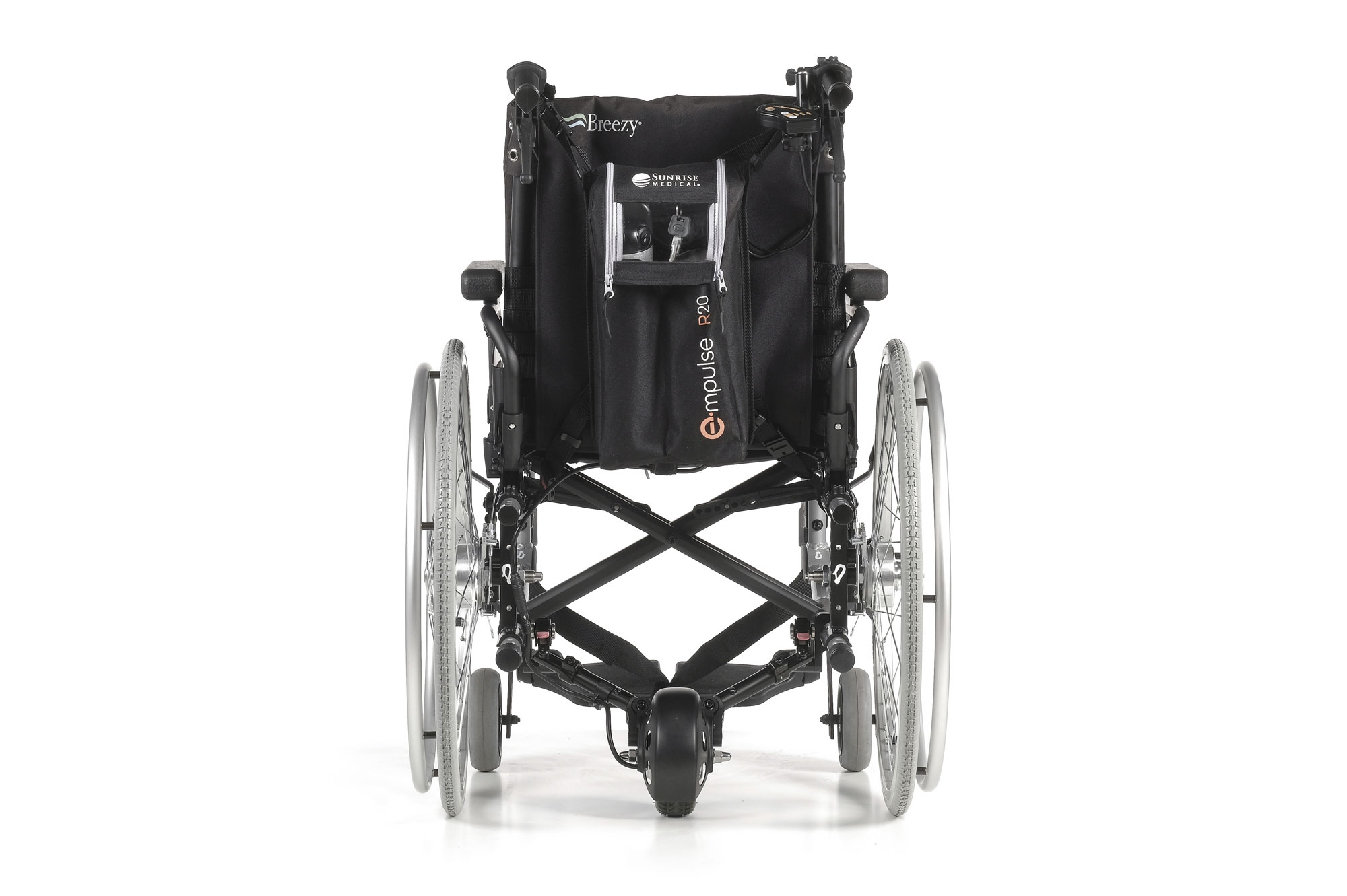

Shown here with the Breezy RubiX².

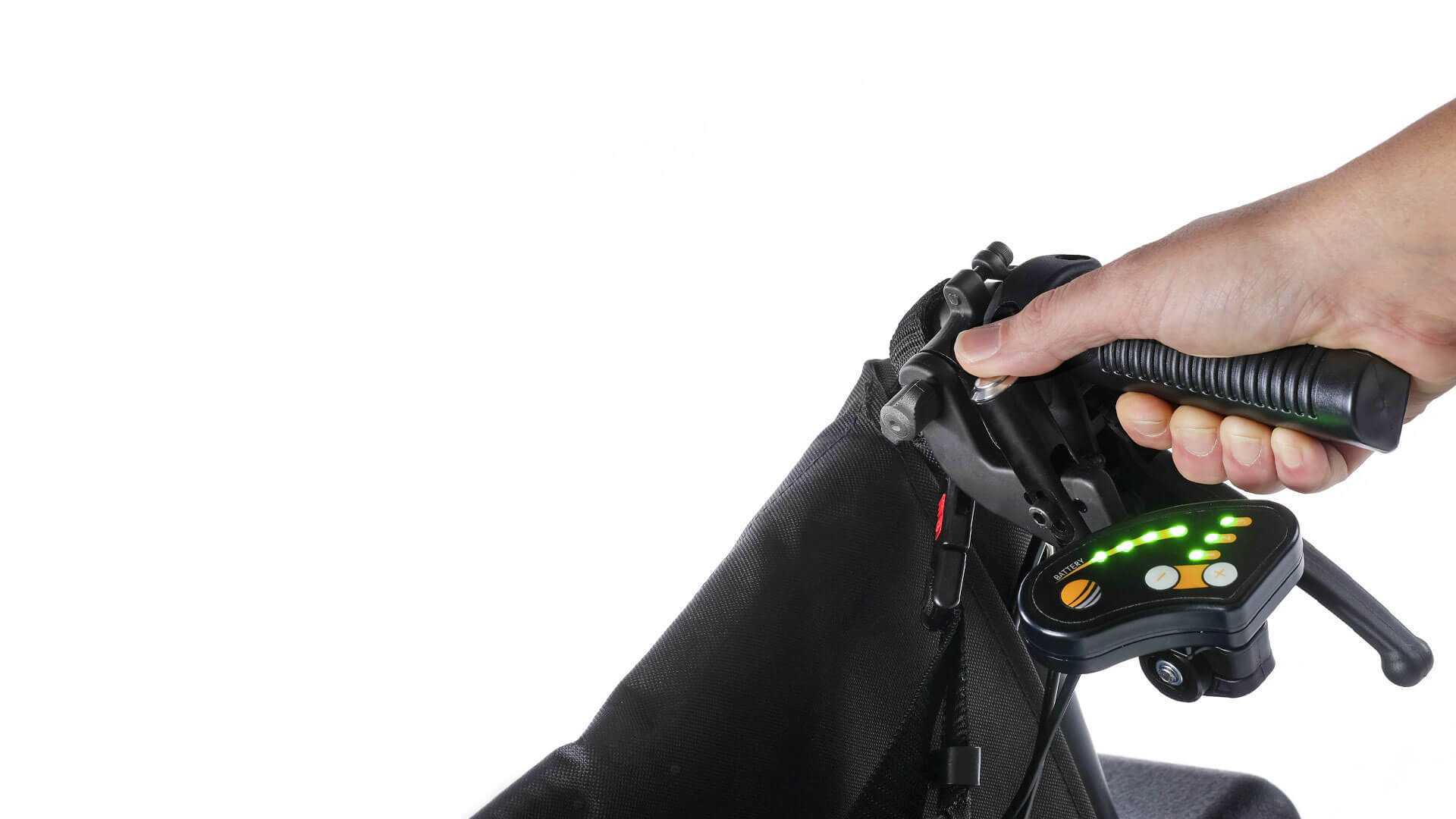

Display with battery capacity and speed range indication

Controls

Display with battery capacity and speed range indication

  • Easy speed range setting for 2 / 3,7 / 5 km/h.

  • Easy one button on/off control for save handling, easy operation.

  • Quick release of control unit for easy, save transport without disconnecting cable.

  • Adjustable position for optimal accessibility, visibility and comfort.

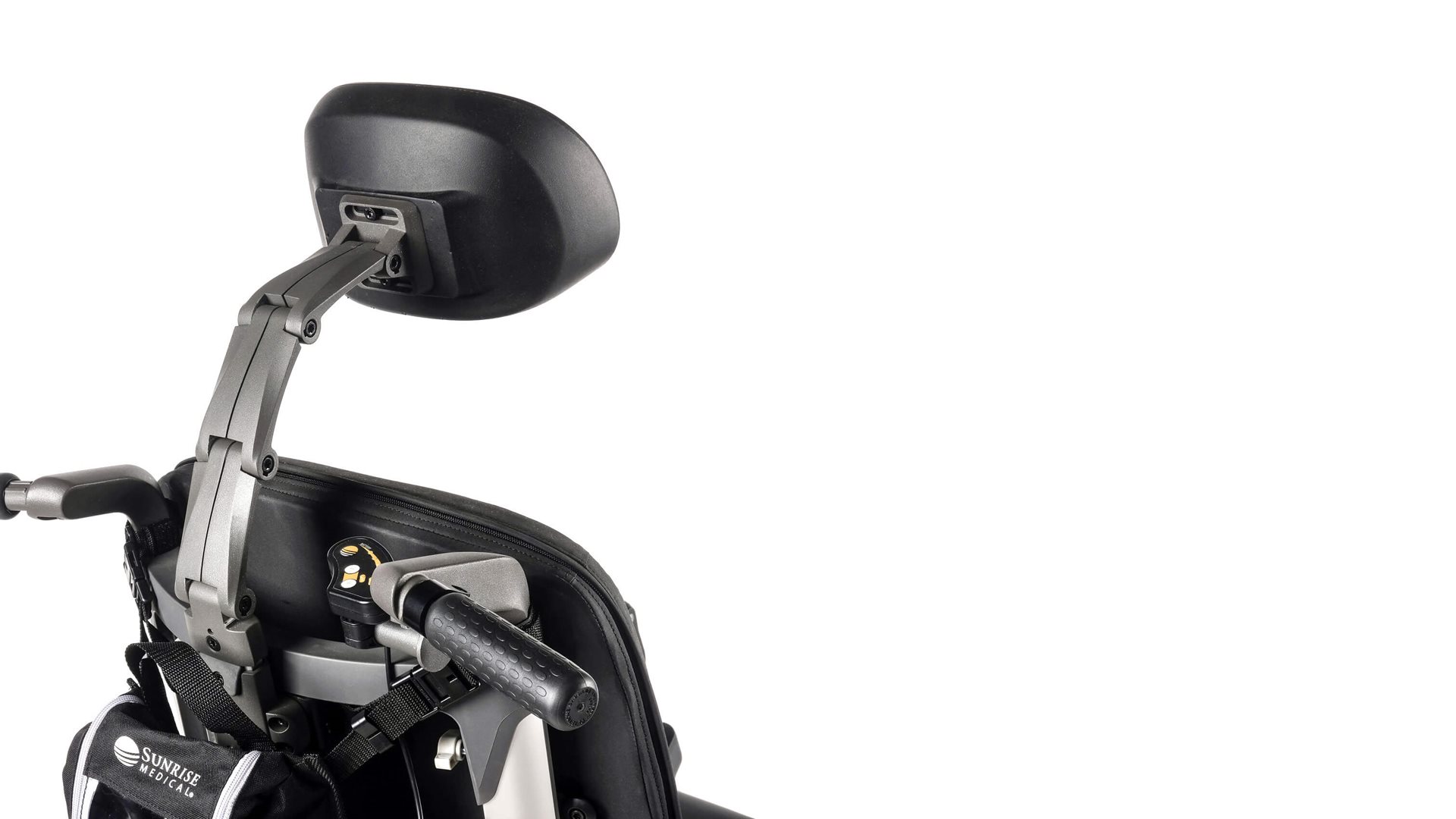

High compatibility

Compatibility

High compatibility

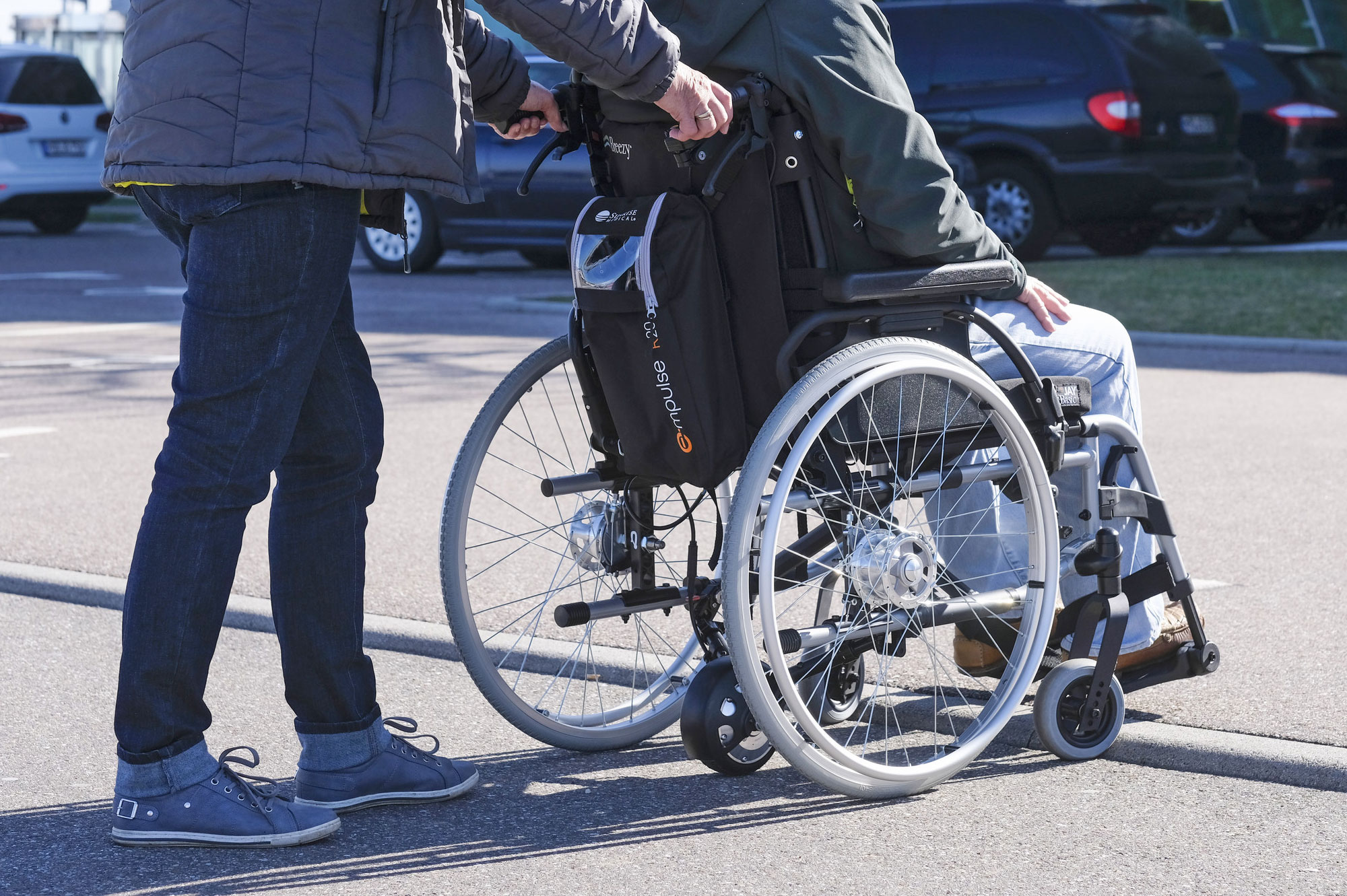

The push device fits on almost any wheelchair (box frame, tube diameter 22-28 mm). You can turn it on by pushing the button, then the R20 is moving forward.

外形尺寸
Seat Width:320 - 600 mm
Drive Wheel:
性能参数/重量
Max. Range:Up to 15 km
Speed:Up to 5 kph
Batteries:5.8 Ah / 36 V (209 Wh) - Lithium Ion
Maximum Safe Slope:10° / 18%
Max Kerb Climb:50 mm
Electronics:Charger 100-240 V AC
Min. Weight:3 kg (Motor and brackets)
Total Weight:4.5 kg
Maximum User Weight:190 kg (Load

作为我们持续产品改进计划的一部分,瑞森医疗保留更改产品规格和设计的权利,恕不另行通知。此外,并非所有提供的特性和选项均与轮椅的每种配置完全兼容。更多详情请参阅用户使用手册。
