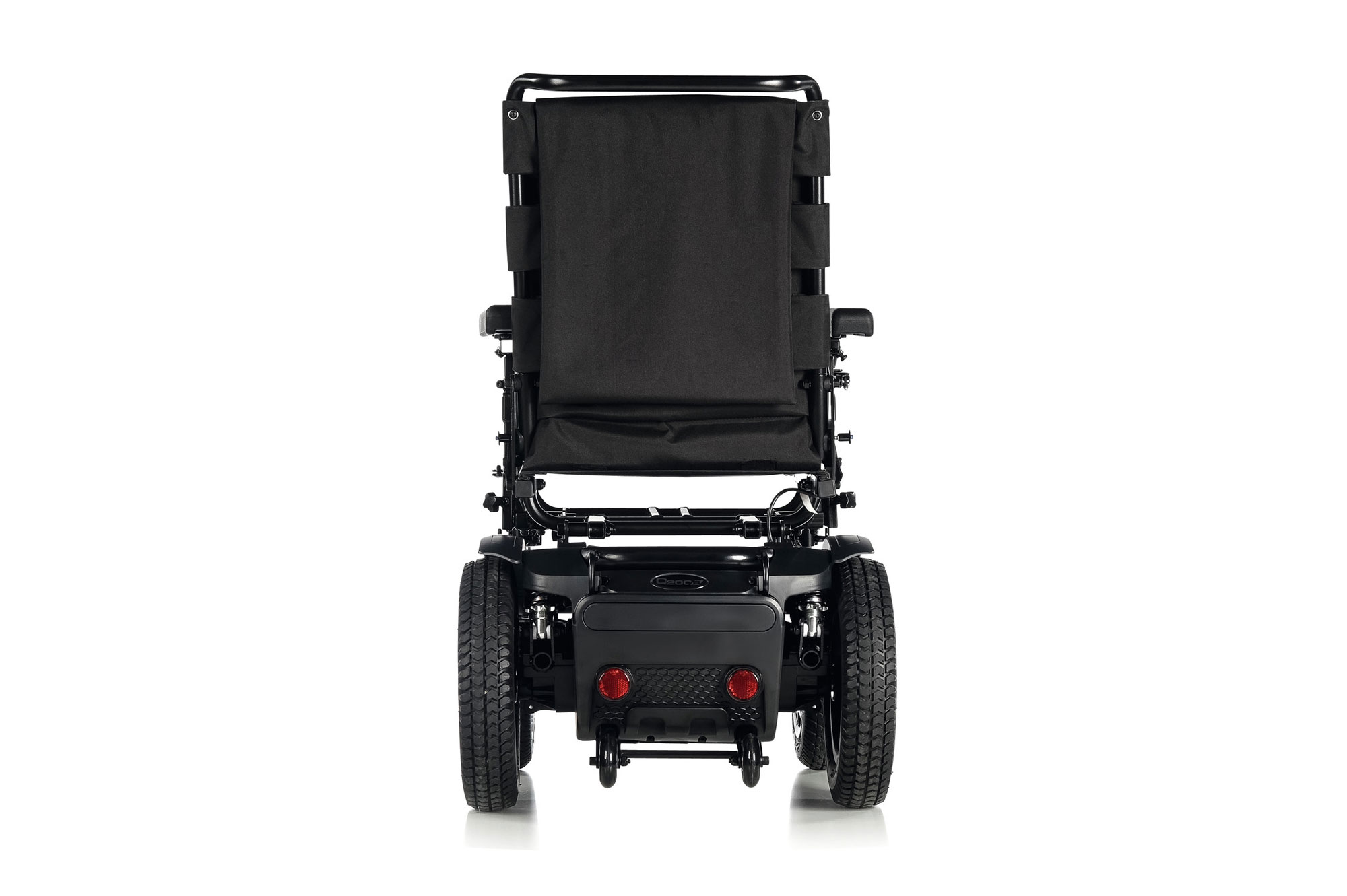

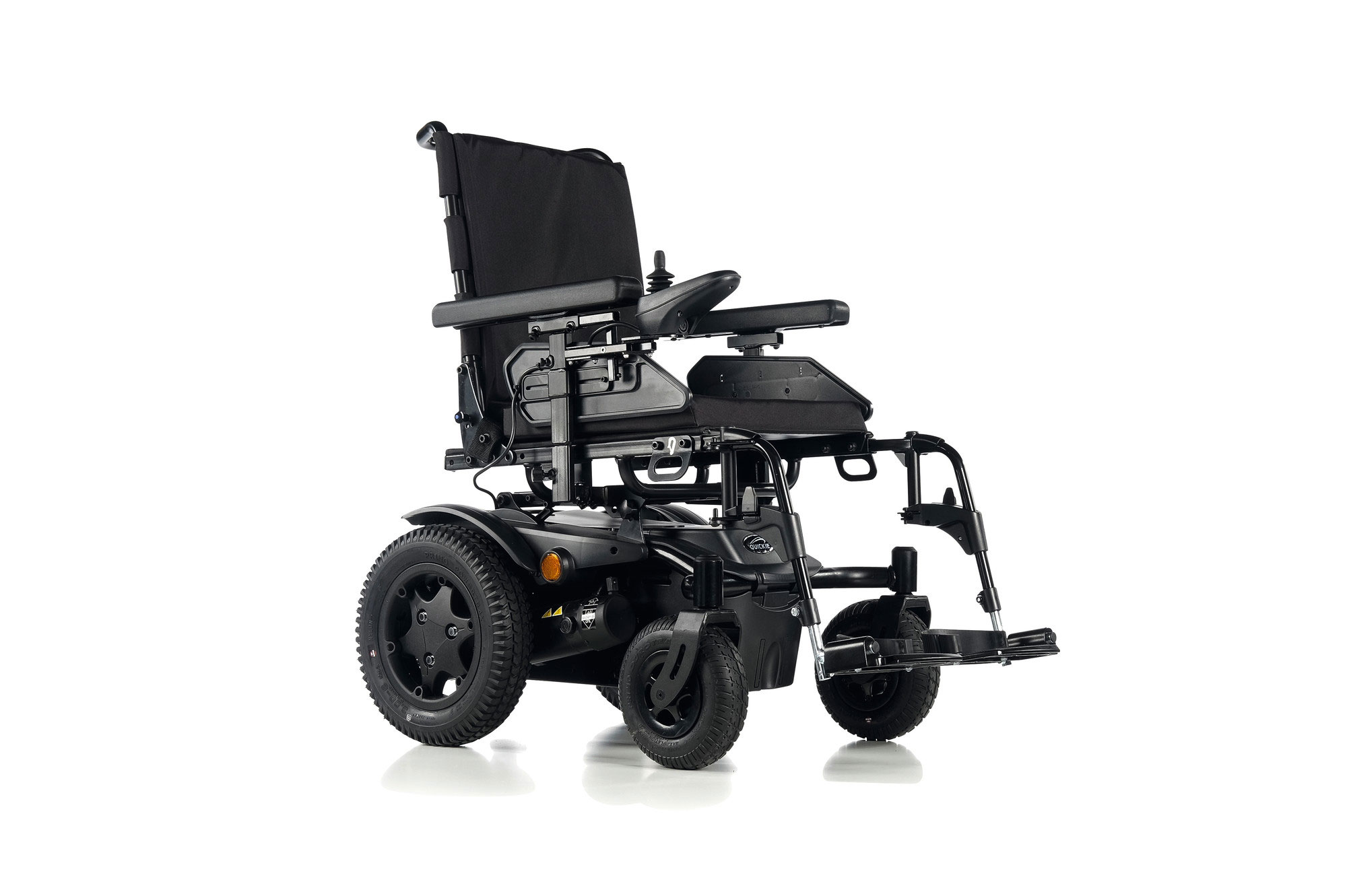

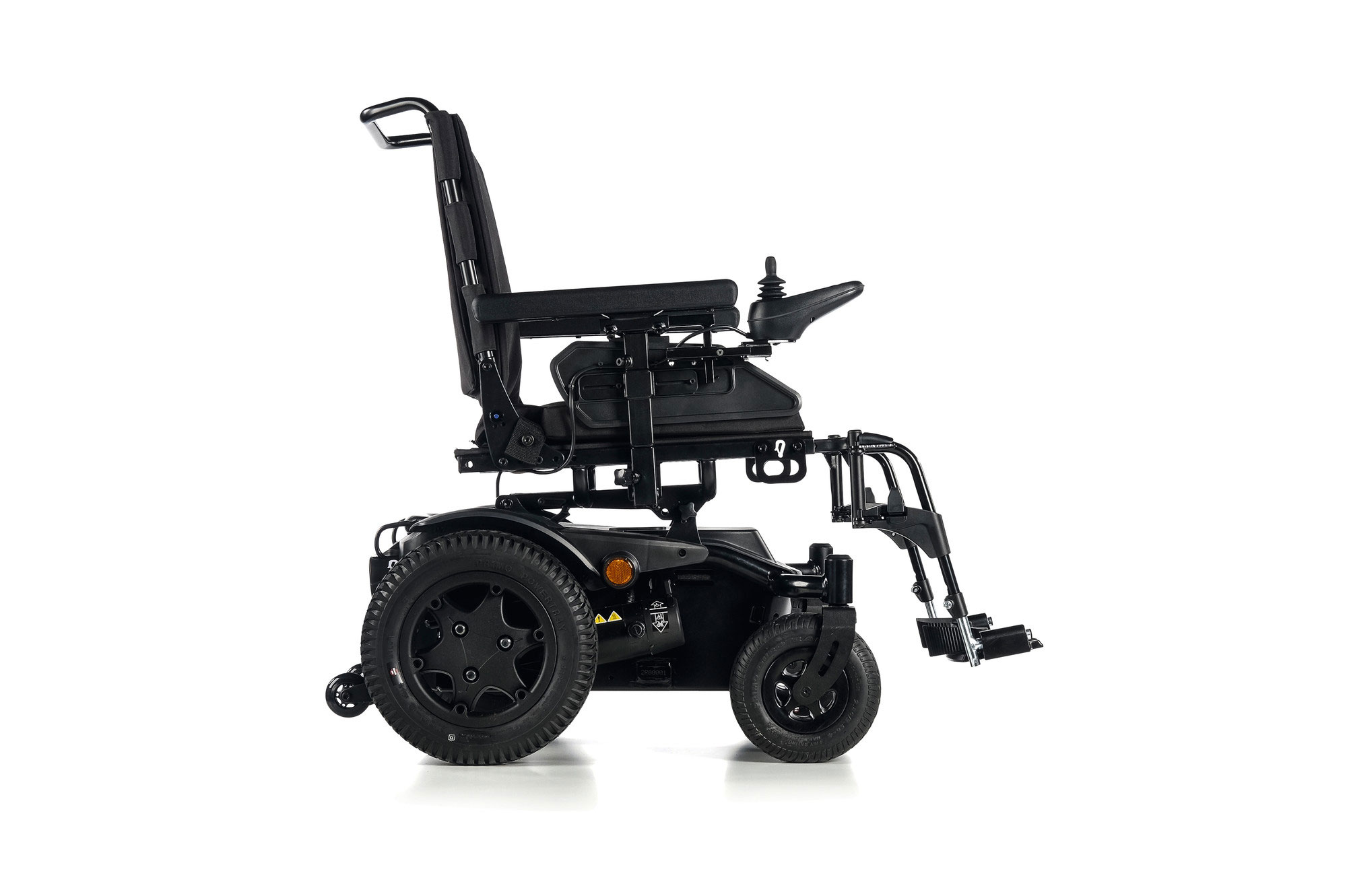

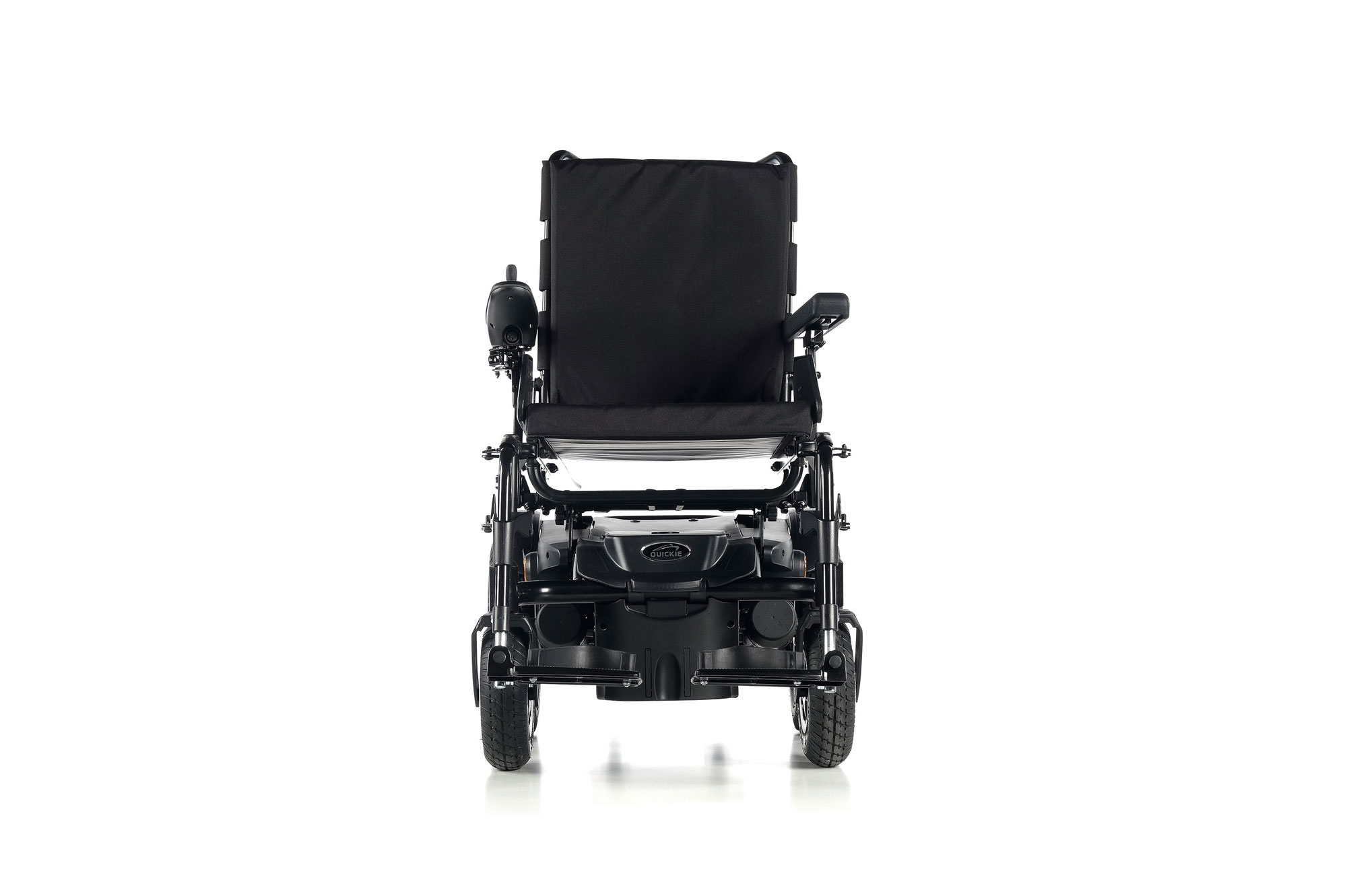

QUICKIE Q200 RRear-Wheel Power Wheelchair

Ultra-compact for indoor agility, with stability and performance that‘s just at home on the city streets

The ultra-compact outdoor / indoor entry level powerchair.

Whether its around the home, the local cafe or shopping mall, the Q200® R is in-touch with its environment inside and out. With an ultra-slim base and tiny turning circle, even the smallest place will feel big.

Precision-measured in length, the Q200 R (1070 mm) will conveniently fit in-and-out of floor lifts and other short spaces without the traditional sacrifice of stability. Effortlessly turn in narrow hallways, kitchens and other restricted spaces without the need for complicated manouvres.

联系我们
QUICKIE Q200 R

Smart base technology

With the Q200 R, our vision was to create a TRUE indoor/outdoor powerchair. One with super-tight indoor manouverability and ZERO compromise on outdoor stability and performance. But how do you design such a finely-balanced power wheelchair?

Lean towards a large drive-base and you'll encounter difficulty manouevering in tight environments. Go too small and it'll be too tippy with a loss of traction. Finding the perfect combination requires testing 100's of configurations. So that's exactly what we did - with SMART BASE TECHNOLOGY.

The result is the QUICKIE Q200 R. A legitimately compact entry-level powered wheelchair that delivers the very-best traction, stability and even the ability to climb kerbs of up to 100 mm.

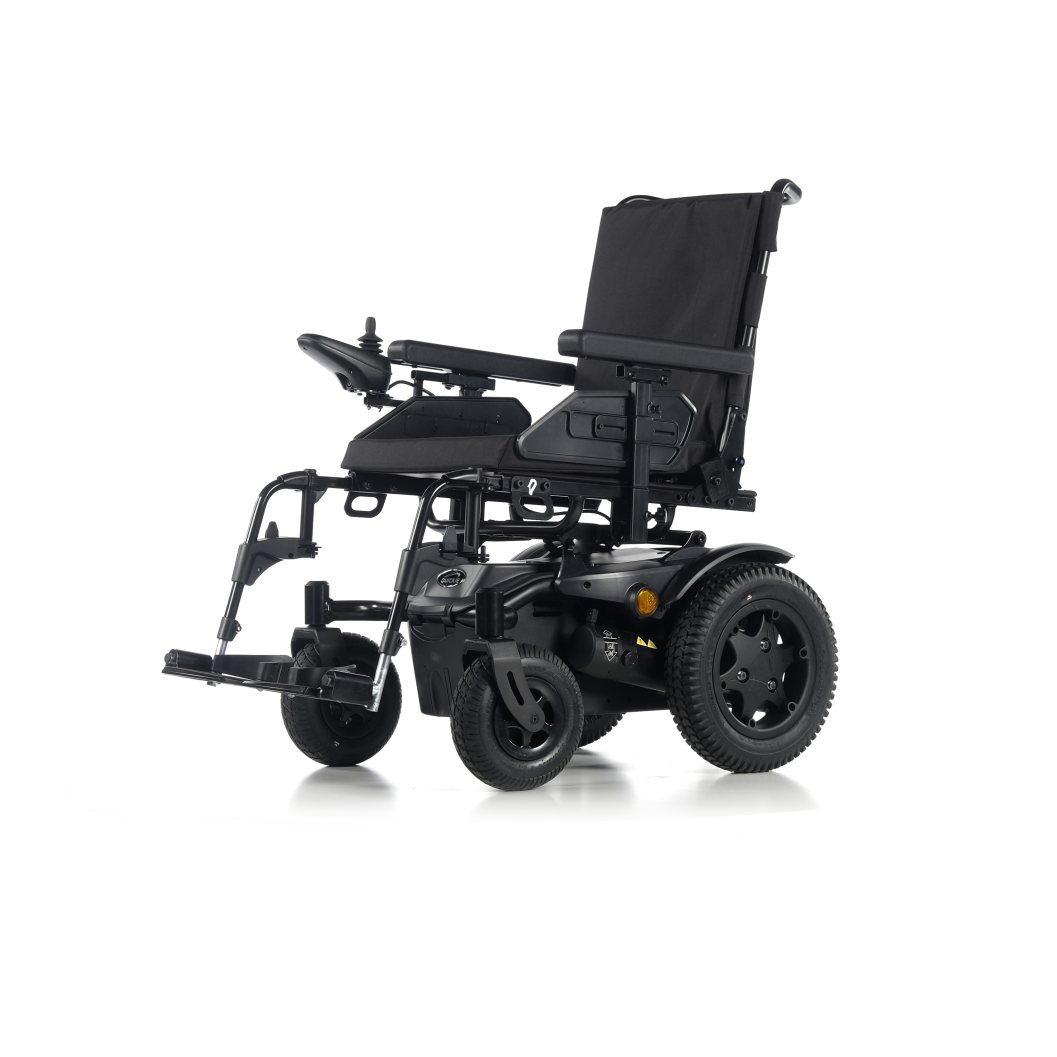

Sit back and relax

Sit back and relax

The Q200 R seating has been designed to fit you. With plenty of settings and a 5-strap tension adjustable back to meet postural requirements, take comfort in knowing that if your needs change, so can your seat.

Seat adjustments include:
Seath depth from 405-505 mm
Optional Legrest width from 380-490 mm
Backrest angle from 0, 4, 8 and 12 degrees
Seat angle from 0, 3 and 6 degrees
Seat width from 430-500 mm
Side guard from 0-50 mm
Optional seat height from 450 mm
Armrest height 230-305 mm

Superior indoor manouverability

Boasting the smallest footprint of 580 mm width and 1070 mm length, the Q200 R‘s turning circle is a tiny 1700 mm, so navigating even the tightest of spaces is a breeze. Going out? The Q200 R provides a stable ride on urban roads and paths, ideal for those day trips out. Unbelievably light at 98 kg, the Q200 R is easy to hoist in and out of your car.

  • The legrests and controller can also swing outwards, so the Q200 R can get even-closer to objects like tables and chairs for an easier transfer in or out of your powered wheelchair.

  • Turn heads and your chair everywhere you go. With a turning circle of only 1700 mm, you can effortlessly turn in narrow hallways, kitchens and other restricted spaces without the need for complicated manouvres. Navigating even the tightest of spaces is a breeze.

  • Fed up of clipping the side of your powerchair or scratching the paint work when squeezing through a tight doorway? The Q200 R‘s ULTRA-SLIM BASE can go where other indoor/outdoor powerchairs won‘t fit - so even negotiating narrow paths or packed tables at your favourite cafe will be no trouble with the unbelievably narrow 580 mm width.

Next generation unique technology

To continue the drive for innovation for the Q200 R we have developed a whole host of new options and accessories. These new options attract a wider group of users to benefit from what the Q200 R has to offer.

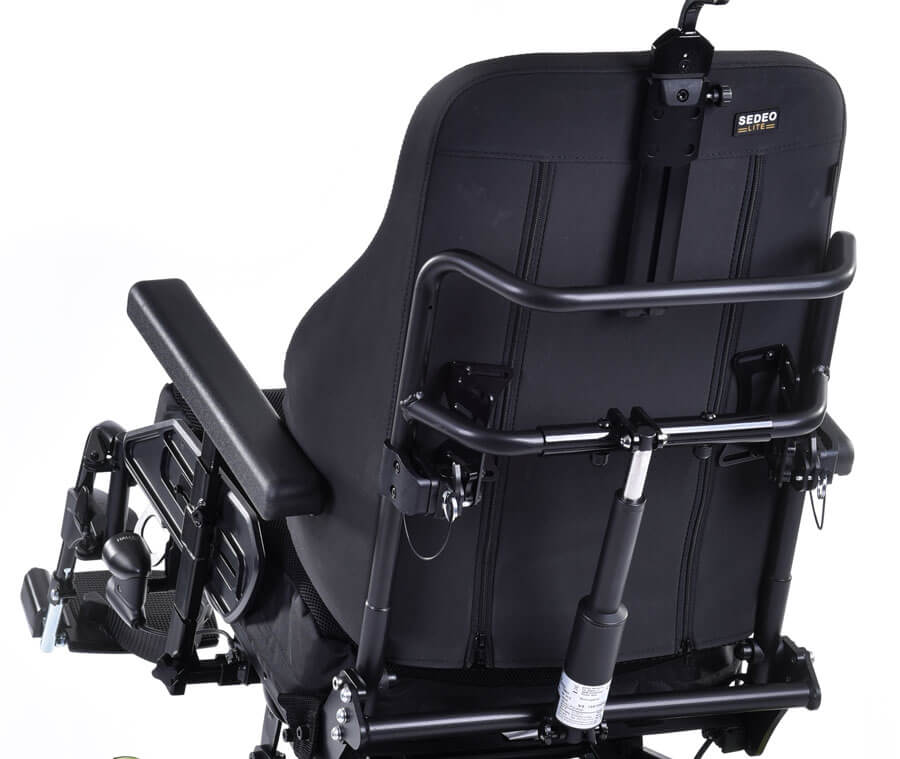

  • The Q200 R features powered recline back ideal for when you want to adjust your position independently to relax.

  • The Q200 R features powered recline back ideal for when you want to adjust your position independently to relax.

  • Use the new SEDEO LITE comfort back for greater postural support and a comfortable ride.

  • Choose your seat based on your size with growth from 380 mm upto 530 mm. Lower 42 cm seat height options are also available and make it easier to access WAV or manoeuvre under tables.

  • Choose your seat based on your size with growth from 380 mm upto 530 mm. Lower 42 cm seat height options are also available and make it easier to access WAV or manoeuvre under tables.

  • The narrowest chassis available (580 mm), 3” centre of gravity and 22° tilt-in-space, the Q200 R is the smallest rear wheeldrive tilt-in-space powerchair on the market.

  • The superior R-Net advanced joystick with a large, easy-to-read HD display and simple to control paddle switches allow for intuitive operation.

Next generation unique technology

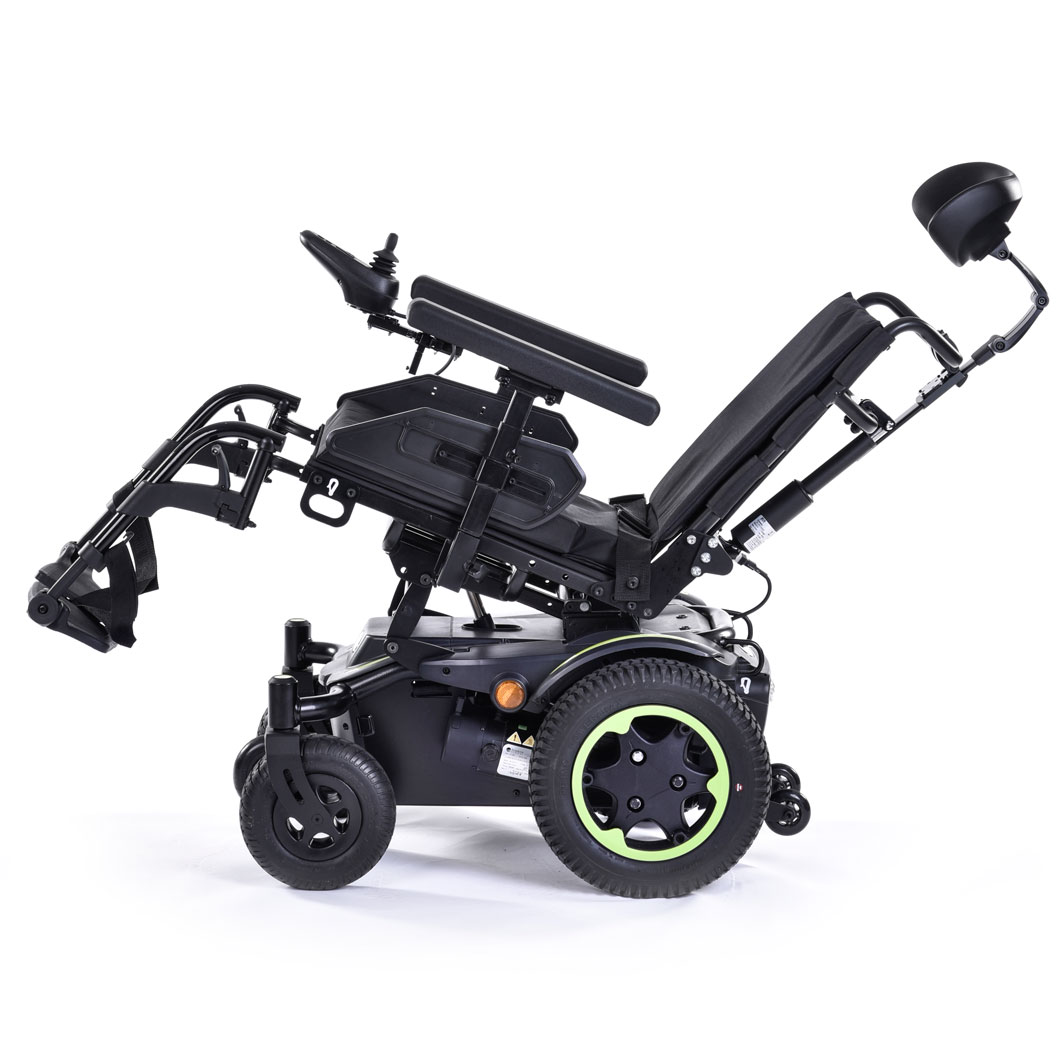

Tilt-in-space

Tilt-in-space

The narrowest chassis available (580 mm), 70 mm (3”) centre of gravity and 22° tilt-in-space, make the Q200 R the smallest rear wheeldrive tilt-in-space powerchair on the market.

外形尺寸
Width:580 mm (22.5'')
Length:1070 mm (42'')
Seat Width:430 - 500 mm (17'' - 19'')
Seat Height:470 mm (3°)
Seat Depth:410 - 510 mm (16'' - 20'')
Seat Tilt:0° - 6°
Backrest Height:500 mm (20'')
Turning Radius:1700 mm (67'')
性能参数/重量
Max. Range:31 km
Speed:6 kph or 10 kph
Batteries:55 Ah
Maximum Safe Slope:
Max Kerb Climb:70 mm - 100 mm (with Kerb Climber)
Electronics:VR2
Min. Weight:from 98 kg (incl. 55 Ah batteries)
Maximum User Weight:136 kg
运输
Crash Tested?:This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

作为我们持续产品改进计划的一部分,瑞森医疗保留更改产品规格和设计的权利,恕不另行通知。此外,并非所有提供的特性和选项均与轮椅的每种配置完全兼容。更多详情请参阅用户使用手册。
