Empulse F55 - 14"Pull Device

• Empulse F55 Brochure

• Empulse F55 Order Form

• Empulse F55 Owners Manual

• Empulse F55 IATA Certification
• Empulse F55 CE Certificate

• Empulse F55 Sales Presentation
• Empulse F55 Compatibility guide

Thanks to the flip up sub frame, the F55's pack size can be minimised within seconds: flip the frame, insert the steering tube and you will get a handy package that can be stowed away easily. If necessary, the sub frame and also the battery can even be fully detached.

Max. speed forward is 6 kph. Optional available is 10 kph or 15 kph.
Using the F55 with max. speed-settings higher than 6 kph is only permitted on public roads in certain countries and otherwise may only be used on private property.
In the absence of approval (attached to the Order Form and must be signed before order), in accordance with the road traffic laws, the F55 with speed >6 kph may not be driven on public roads, bicycle-lanes and pavements. You need to inform yourself about the country specific legislation regarding usage and your legal obligation to insure the F55 speed settings higher than 6 kph (10/15 kph). When you're travelling with your F55, always check the specific legislation in the respective country.

The F55 easily fits most manual folding and rigid wheelchairs. Please refer to the Compatibility Guide on the Sunrise Medical website. The Compatibility Guide indicates all chairs for which a Combination agreement exist. The list is an indication of wheelchair models the F55 can be mounted on. Please see also the section "Docking Information" in the Compatibility Guide. Here you  find even more information about what requirements have to be met to attach the F55 to your wheelchair. Frame shape, CoG, wheel-size and seat-depth are of influence. Additionally, a straight section of the frame tube of at least 35 mm is also necessary for the attachment of the clamps. Therefore it is essential to try and test it to be 100% sure! Or ask your supplier for advice.

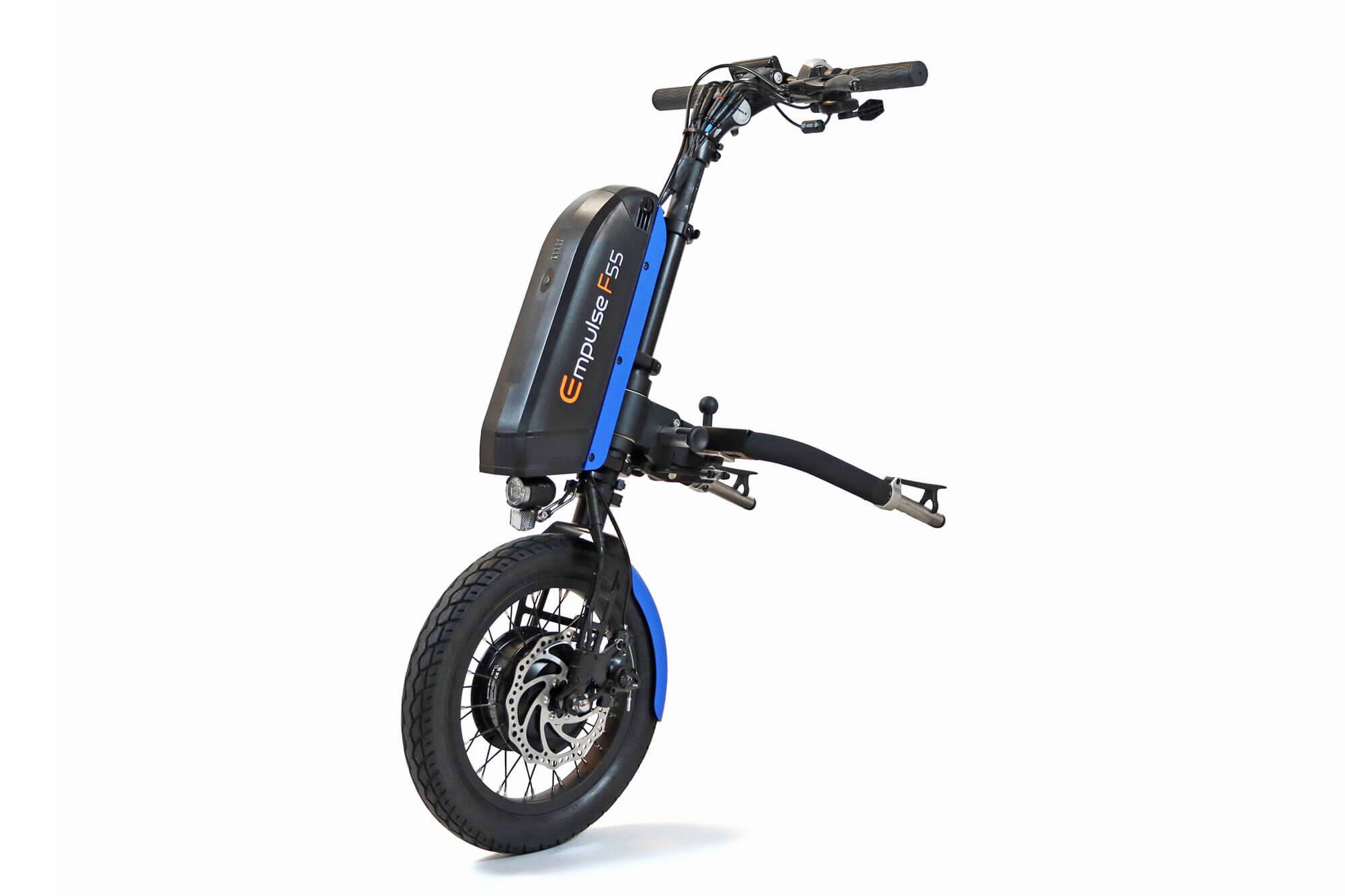

The F55 is a small, versatile, very maneuverable and transportable pulling device that is intended for in- and outdoor usage. The 14" shows better offroad-capatibility, whilst the 8.5" version convinces with ist very small turning circle in- and outdoor.

The model with the 14" wheel provides you a better ride comfort, more stability at high speed and an unbeatable offroad-capability that allows you to tackle almost every terrain. If you prefer the smallest pack size and greatest maneuvrability, the version with the 8.5" is your choice. One thing is common to both: A carefree driving fun!

For optimal battery life, the battery should be stored at a temperature of 10°C to 25°C and a humidity of 20% to 75%. Ideally, the battery should be kept at about 75% charge. If the battery is stored for too long at a low charge, the voltage inside the battery will drop so dramatically that a deep discharge can occur, permanently damaging the battery. To wake up the battery from sleep mode after a long period of inactivity (2 weeks), press the button above the USB charging port.
