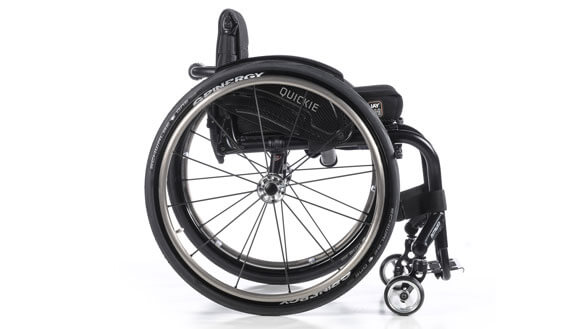

QUICKIE NitrumRigid Wheelchair

Precision-engineered to turn your energy into motion, so you can go further, faster and for longer.

Energy into Motion.

Nitrum® – the lightest in its class, precise adjustment and innovative features. Ultra-responsive for movement without energy losses. Our long history of developing high-end manual wheelchairs and input from wheelchair users drove the design of the newest QUICKIE ultra-lightweight rigid wheelchair. Intended for users who are looking for unmatched driving performance, innovative details and a large variety of options to get the perfect fit.

联系我们
碰撞测试 QUICKIE Nitrum
3D Visualizer

Create yours

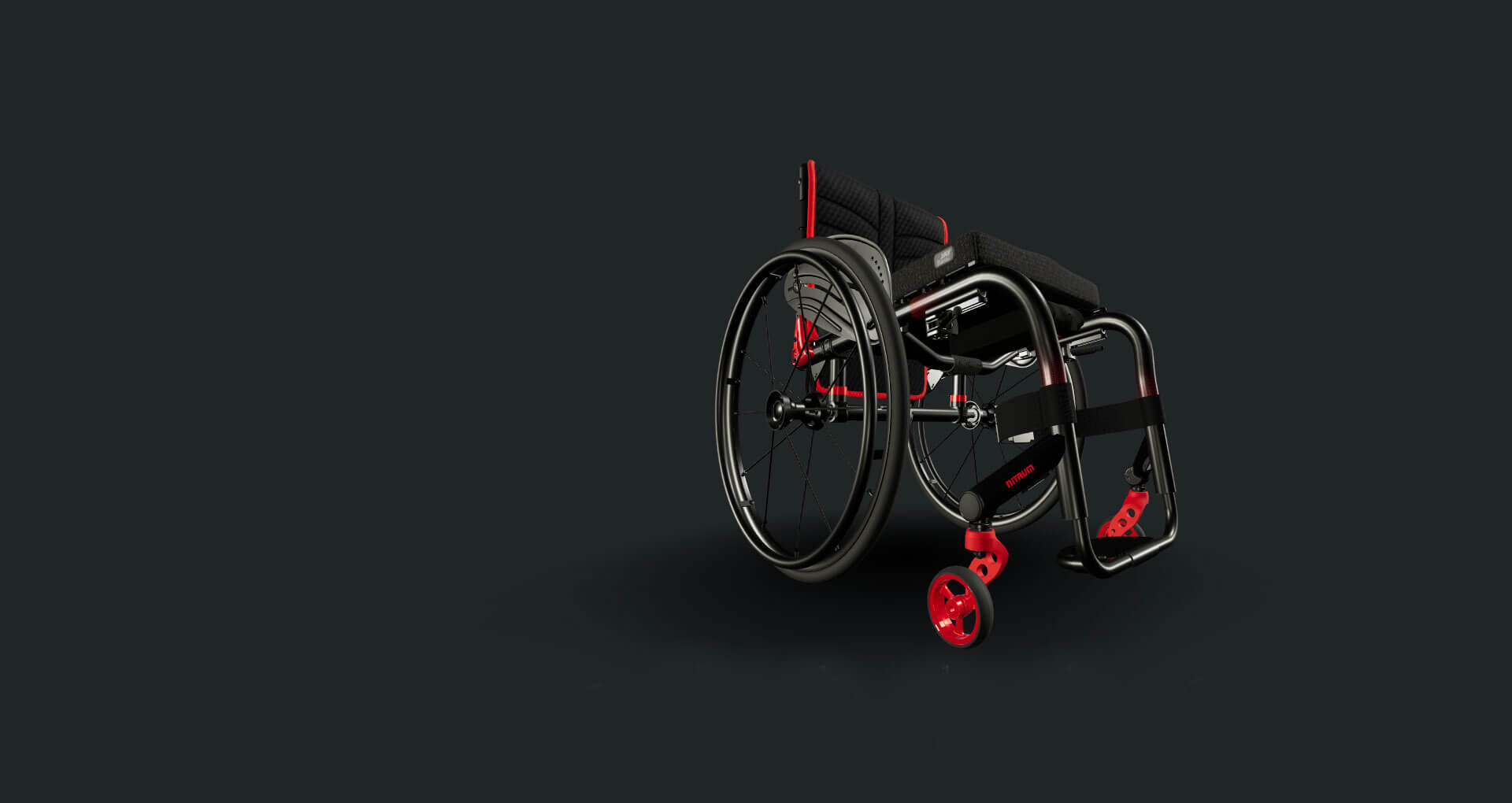

3D Visualizer

Our online visualizer will help you to create the Nitrum of your dreams. Just click the button below to begin.

Start

Weight & Rigidity

The lightest in its class.

This is innovative engineering at its best. We employ state-of-the-art materials and principles to minimise weight (from 7.5 kg) and maximise strength, so you need less energy to propel.

  • With fewer stress points due to its elongated sides, our unique oval tubing is stronger than round as it's less likely to flex under pressure. It's also lighter as the shape uses less material.

  • Sculpted from high-strength 7020 Aluminium, the frame is specially heat-treated using our patented ShapeLoc technology, so the tubing can be significantly thinner and lighter without any sacrifice to its strength.

  • Frame clamped castor links and cross-tubes can increase weight and cause energy loss through vibration. The NITRUM is hand-welded into one-complete frame, so you get a stiffer, lighter ride.

  • The forged aluminium backrest bracket is extremely stiff,so it's significantly more energy efficient without sacrificing the adjustability of the backrest angle or height.

A perfect fit for EVERY body.

Adjustability

A perfect fit for EVERY body.

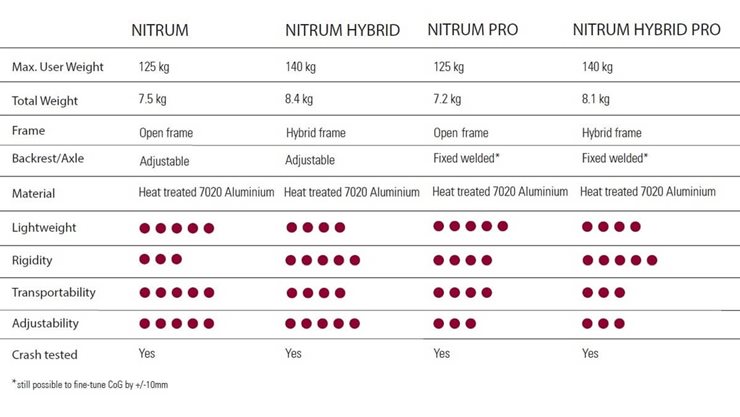

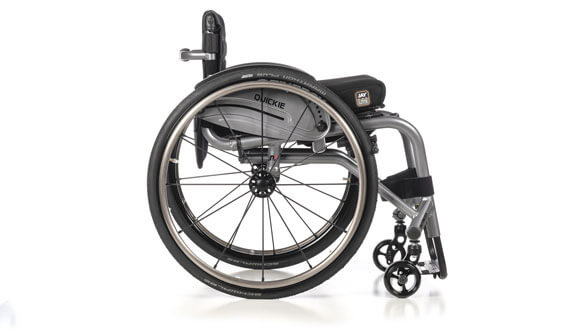

Body positioning is crucial for propulsion efficency. When your weight is balanced incorrectly, your wheelchair is more difficult to push. That’s why the Nitrum series offers you the widest range of frame versions (32 in total) in its class - without any sacrifice to weight or rigidity. Which version is the right one for you?

The first Integrated LEDs with removable battery.

User-Inspired Innovations

The first Integrated LEDs with removable battery.

Mounted on both castor arms and with  3 modes (high, low and blink), the integrated LED's will light-up your night.  The power pack provides up-to 4 hours of run time and can be easily detached for recharging or to save you 110g weight. How’s that for bright?

Precision Control

Patented castor-link

Instead of multiple parts welded, the castor-link is one hollow-forged component. Stronger, lighter and completely adjustable, the castor angle (1) and height (2) can be changed to improve handling whilst you're in the wheelchair. The castor link length and angle are also personally-tailored to your wheelchair, for the very-best handling, turning and propulsion efficency.

A unique-twist to backrest folding.

Lifting

A unique-twist to backrest folding.

Just grab the patented Twist Lock bar with one hand and twist it to release, fold and load the chair into your car. With double-locking, you can also use the same bar to lift it. It'll also lock without removing your sideguards or low-profile cushion.

外形尺寸
Seat Width:320-500 mm
Seat Depth:340-500 mm
Front seat height:430-570 mm
Rear seat height:370-500 mm
Backrest Height:250-450 mm
Back Recline:-17.5° - 10°
Colours:22
性能参数/重量
Maximum User Weight:125 kg
Total Weight:7.5 kg
运输
Crash Tested?:This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

作为我们持续产品改进计划的一部分,瑞森医疗保留更改产品规格和设计的权利,恕不另行通知。此外,并非所有提供的特性和选项均与轮椅的每种配置完全兼容。更多详情请参阅用户使用手册。
