QUICKIE HeliX²Folding Wheelchair

The configurable active chair designed for efficient fleet use.

HeliX² - the configurable, adaptive wheelchair that combines the strength of the RubiX² with a variety of active lifestyle options (including a choice of lightweight wheels, castors and tyres, optional angle adjustable backrest and tension adjustable back sling and back height adjustment). Also, the angle-adjustable castor fork is positioned outwards, to help maximise legroom.

联系我们
碰撞测试 QUICKIE HeliX²

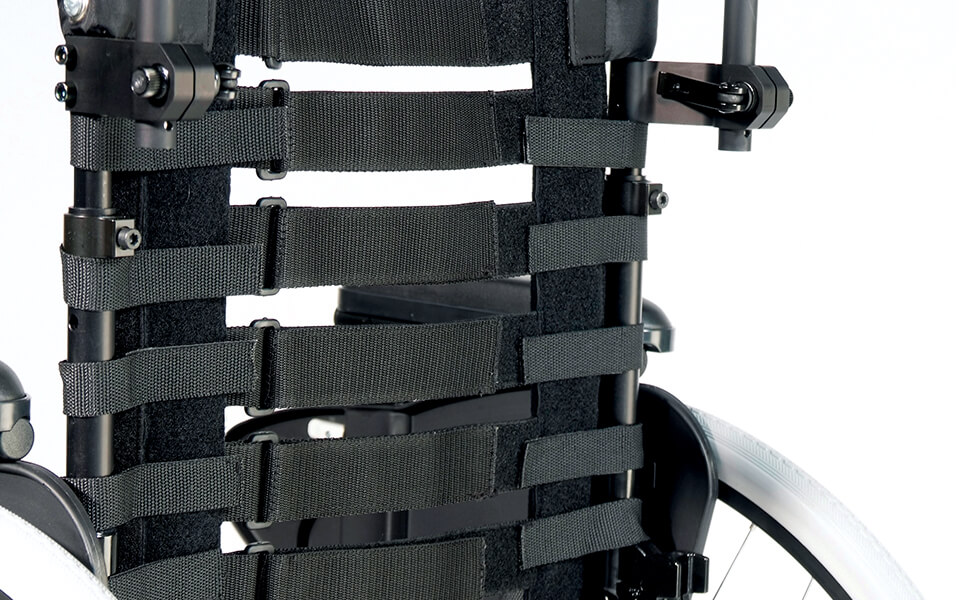

Adaptable back upholstery

Adaptable back upholstery

The HeliX² is equipped with an adjustable 7-strap back upholstery. This enables optimum adaptation to the user's back for better positioning whilst in the wheelchair.

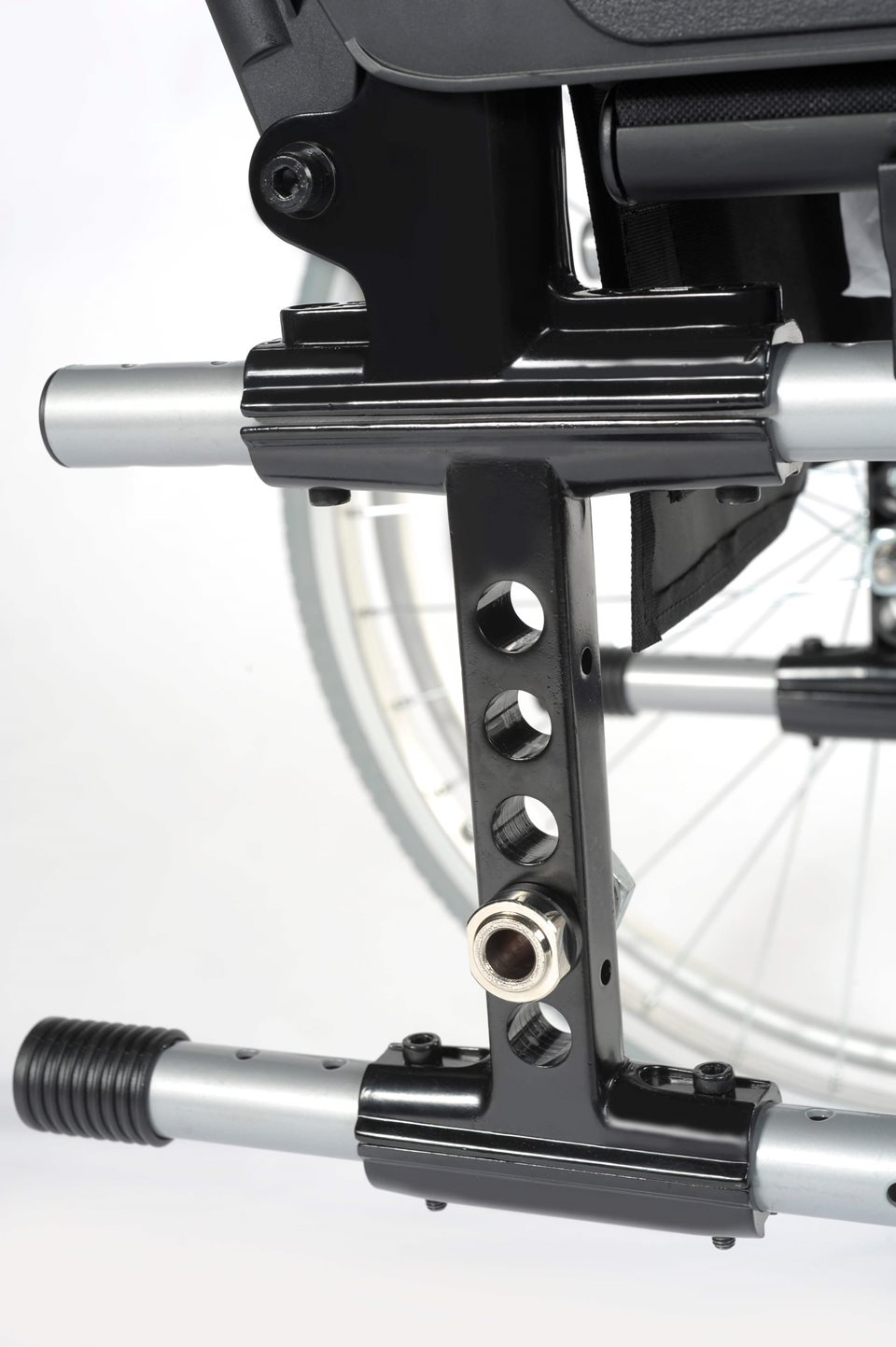

Flexible axle plate

Flexible axle plate

The axle plate of the HeliX² can be easily adjusted for both seat height and centre of gravity, allowing for optimal positioning for the user.

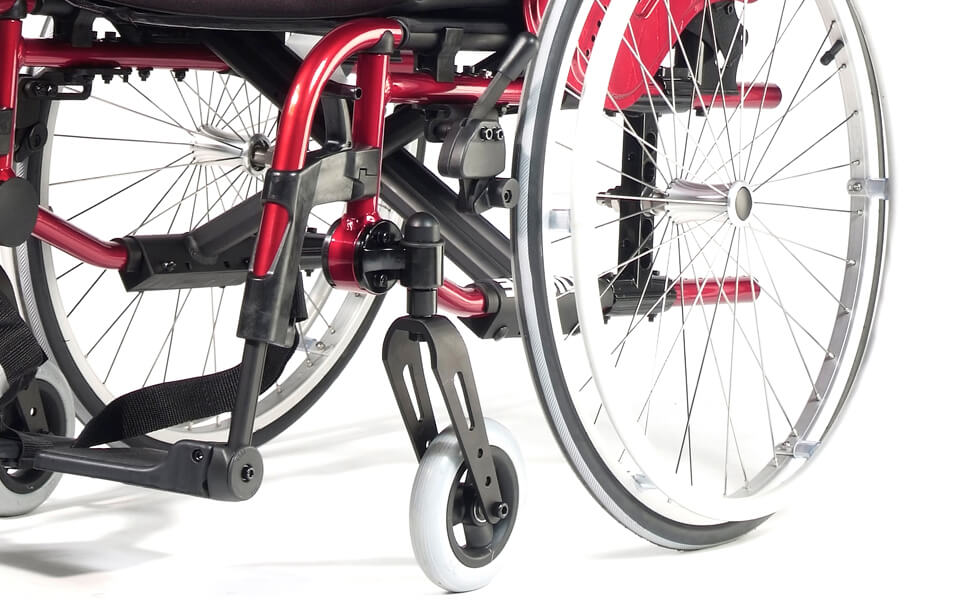

Active lifestyle options

Active lifestyle options

Choose from a selection of lightweight stylish wheels, castors and tyres to reflect your active lifestyle.

Castor fork connection

The castor fork not only has increased levels of adjustment, but it's also attached by M8 bolts for added stability.

外形尺寸
Width:SW + 20 cm
Seat Width:38-52cm
Seat Depth:41-51cm
Front seat height:35,5-53cm
Rear seat height:35,5-53cm
Seat Angle:0° - 6°
Backrest Height:35 - 50 cm
Backrest Angle:-5° - +20° (optional)
Frame Inset:-
Camber:0° / 3°
Colours:22
性能参数/重量
Frame Type:70° / 80°
Maximum User Weight:125 kg (170KG XL version)
Total Weight:from 15,1 kg
运输
Crash Tested?:This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

作为我们持续产品改进计划的一部分,瑞森医疗保留更改产品规格和设计的权利,恕不另行通知。此外,并非所有提供的特性和选项均与轮椅的每种配置完全兼容。更多详情请参阅用户使用手册。
